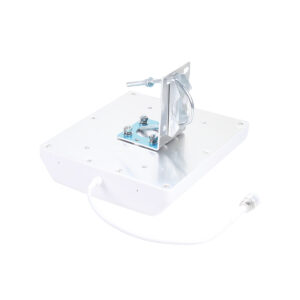

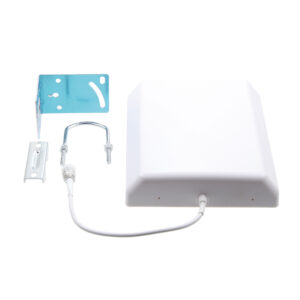

Outdoor Panel Antenna
Key features
- Full band (806-2700 MHz)
- Designed for outdoor use
- Broadcasts signal in one direction
- Broadband 2G/3G/4G and WLAN systems
- Gain 7/9 dBi
- Easy to install
It’s a high gain panel antenna mounted outdoors to receive poor mobile signal from BTSs. This outdoor antenna is directional and broadcasts signal only in one direction.
Note important that all antennas are passive and need to be connected to a booster / repeater or amplifier to deliver improved signal and that no antenna works on its own whether indoors or outdoors.
OVERVIEW
Note important that all antennas are passive and need to be connected to a booster / repeater or amplifier to deliver improved signal and that no antenna works on its own whether indoors or outdoors.
FREQUENCY RANGE | 698-806/ 806-960/ 1710-2700 MHz |
---|---|
GAIN | 5±0.5/6±0.5/7±0.5dBi |
POLARIZATION | Vertical |
HORIZONTAL BEAMWIDTH | 80° /80° /65° |
VERTICAL BEAMWIDTH | 73° /70°/60° |
FRONT-TO-BACK RATIO | > 8/> 10/> 15 |
VSWR | ≤ 1.8 |
INPUT IMPEDANCE | 50Ω |
PIM, 3RD ORDER, 2 X 2 W | -140dBc |
INPUT POWER, MAXIMUM | 50 W |
WEIGHT | 0.38 KG |
MOUNTING KIT | On-wall |
LIGHTING PROTECTION | DC Ground |
CONNECTION TYPE | N-Female |
DIMENSION | 180*170*60mm |
COLOR | White |
OPERATING TEMPERATURE | -10ºC~+55ºC |
RELATIVE HUMIDITY | 5% – 95% |
BAROMETRIC PRESSURE | 55 kPa -106 kPa |
ENVIRONMENT CONDITION | IP40 |
