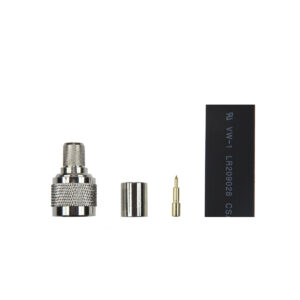

N-Male Crimp Connector
R95
Key Features
- Easy to install
- Exquisite appearance
- Optimized dimension
OVERVIEW
N-Male Crimp Connector
To terminate this at the end of any cables you need all the terminating kits (the Prep tool and the crimp tool).
SPECIFICATIONS
Technical Parameters | |
| Â Insert hole Material | Â Bronze |
| Â Housing Material | Â Brass |
| Â Screw sleeve Material | Â Brass |
|  Impedance |  50Ω |
| Â Frequency band | Â All Frequencies |
| Â Rated operating voltage | Â 335V |
| Â Contact resistance: | |
|  inner conductor | ≤ 3mΩ |
|  outer conductor | ≤ 2.5mΩ |
| Insulation resistance | ≥5000 MΩ |
| Medium withstand voltage | 1000V |
Mechanical Characteristics | |
| Inner conductor separation force | N>0.57N |
| Mechanical life | >500 times (12 times per minute) |
| Connecting nut torque | SMA recommended 0.68~1.13N. m |
| Material of Coaxial Cable | RG187 |
Working Environment | |
| Ambient temperature | -55~155°C |
| Relative humidity | 95% at +40°C |
