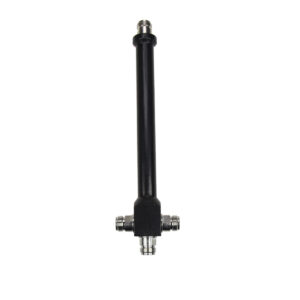

Cavity Three-Way Splitter for Precision RF Signal Distribution

A Cavity Three-Way Splitter is a professional RF distribution component designed to divide a single input signal into three controlled, balanced output paths with low loss and high isolation. Built using tuned cavity technology, this type of splitter is widely used in antenna networks, signal booster installations, SmartBooster systems, and distributed antenna systems where signal accuracy and stability are essential.

Unlike basic resistive splitters, a cavity-based design uses precision internal resonant chambers to manage RF energy. This results in more predictable electrical behavior, better port separation, and stronger performance under higher power levels. For engineers and installers who require dependable multi-antenna distribution, this splitter class delivers measurable advantages.

Why a Cavity Three-Way Splitter Matters in RF Systems

Signal distribution is not just about dividing power — it is about maintaining signal quality after division. A Cavity Three-Way Splitter is engineered to protect signal integrity while feeding three antennas or device paths at once.

In many real-world RF systems, including cellular coverage improvement and in-building wireless networks, you may need to serve three coverage zones from one source. Using a cavity-based splitter instead of a low-cost alternative helps reduce unwanted reflections, port interaction, and excess loss.

This directly supports:

• More stable system operation

• Better antenna balance

• Reduced interference between branches

• More consistent coverage results

When performance matters, cavity architecture gives installers tighter control over RF behavior.

How a Cavity Three-Way Splitter Works

A Cavity Three-Way Splitter uses carefully dimensioned metal cavities to guide and divide RF energy. Each cavity is tuned to maintain impedance and frequency response across the operating band. Because the energy is managed through physical RF structures instead of simple resistive networks, the output ports remain better isolated from one another.

This design approach provides:

• Controlled impedance matching

• Lower insertion loss than basic splitters

• Strong port-to-port isolation

• Stable frequency response

• Higher power tolerance

These characteristics make the component especially valuable in booster-fed antenna systems and professional RF networks.

Built for Signal Boosters and Multi-Antenna Layouts

A major use case for a Cavity Three-Way Splitter is signal booster and SmartBooster deployment. When a boosted signal must be delivered to three separate indoor or outdoor antennas, balanced distribution becomes critical.

Typical layouts include:

• Three-room indoor antenna coverage

• Tri-sector antenna feeds

• Warehouse zone coverage

• Office floor signal distribution

• Retail multi-area coverage

Because the splitter maintains controlled output relationships, each antenna line receives a predictable share of the signal. That makes system tuning faster and results more repeatable.

Performance Advantages in Real Installations

Choosing a Cavity Three-Way Splitter provides field-level benefits that show up immediately during testing and long-term operation.

Lower Effective Signal Loss
More of your input signal is preserved across the three outputs compared with low-grade splitters.

Cleaner Port Separation
High isolation reduces the chance that antenna line behavior affects neighboring ports.

Better Booster Compatibility
Stable impedance helps booster systems run within their designed operating range.

Higher Power Handling
Supports stronger input levels used in commercial and industrial RF systems.

Consistent Output Balance
Helps maintain even coverage across multiple antenna branches.

These advantages are especially important where coverage complaints or performance audits are costly.

Mechanical and Electrical Build Quality

A quality Cavity Three-Way Splitter is typically built with a machined or precision-cast metal body that doubles as an RF shield. This enclosure protects the internal cavity structures while reducing external interference.

Common construction features include:

• Shielded metal housing

• Precision cavity chambers

• Industry-standard RF connectors

• Corrosion-resistant plating

• Secure mounting points

• Clearly labeled ports

Connector options often include N-type or DIN variants depending on system requirements. This allows compatibility with widely used coax and antenna hardware.

Installation Best Practices

To get the best results from a Cavity Three-Way Splitter, installation technique matters. Proper cable handling and connector practices help preserve the designed performance.

Recommended guidelines:

• Use matched-impedance coax cables

• Keep cable runs as equal as practical

• Avoid tight cable bends near ports

• Torque connectors to specification

• Ground the splitter body if required

• Weather-seal outdoor connections

After installation, measure output levels or conduct a sweep test if tools are available. Balanced readings across ports confirm correct setup.

Ideal Use Environments

A Cavity Three-Way Splitter is suitable across a wide range of RF environments:

• Commercial buildings

• Office complexes

• Warehouses

• Transportation facilities

• Multi-room residential systems

• Industrial plants

Models rated for protected outdoor use can also be deployed near rooftop antenna clusters when properly sealed.

A Cavity Three-Way Splitter is a precision RF component built to divide one input signal into three balanced, low-loss outputs with high isolation. Its cavity-based internal design delivers stronger electrical stability, better port separation, and improved power handling compared to basic splitter designs. That makes it an excellent choice for signal boosters, SmartBooster systems, DAS networks, and multi-antenna installations. When reliable three-way signal distribution is required, cavity technology provides the performance foundation professionals trust.
