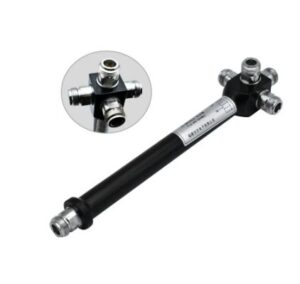

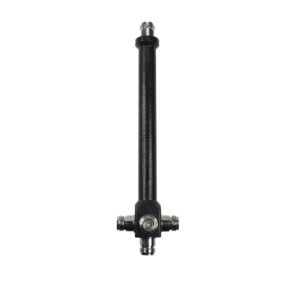

Cavity Four-Way Splitter

Four-way splitter is used to deliver the enhanced signal to 4 or more rooms. To cover the entire area, this accessory should be used with 3 additional indoor antennas for a single booster.

Key features

• Full band (698-2700 MHz)
• Retransmits signal in 4 directions
• Easy to install
• Meets the international technical standards

Four-way splitter is used to deliver the enhanced signal to 4 or more rooms. To cover the entire area, this accessory should be used with 3 additional indoor antennas for a single booster. The splitter supports 2G, 3G and 4G signals at the frequency range from 698 to 2700 MHz.

The accessory is suitable for all HiBoost repeaters.

Frequency Range 698-960/1710-2700 MHz

Splitter Loss (dB) 4.8

Insertion Loss (dB)≤ 0,4

Input & Output Impedance50 ohm

Isolation (dB)No

VSWR≤ 1.3

Max. power 50 W

Connector Type  N-Female Operating

Temperature     -35 ℃~+60℃

Splitter Weight      No
