Key Features & Benefits

• Full-band support (698–2700 MHz)
  Compatible with 2G, 3G, 4G LTE and supported 5G networks
• Divides signal into three equal outputs
  Expands coverage to multiple rooms or zones
• Optimised for signal booster systems
  Works with indoor antennas for balanced distribution
• Stable and controlled signal split
  Helps maintain consistent voice and data performance
• Passive device – no power required
  Simple inline installation
• Compact, durable construction
  Suitable for residential and commercial environments
• Built to international RF standards
  Reliable performance for professional installations

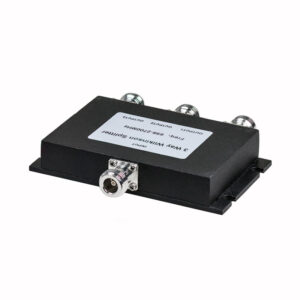

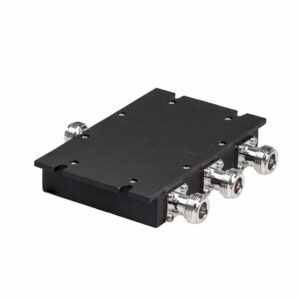

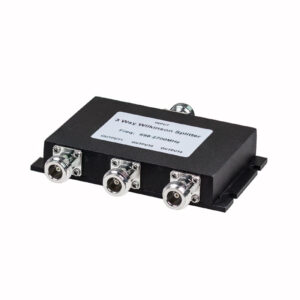

3 Way Wilkinson Splitter / 3 Way Micro Strip Splitter

The 3 Way Wilkinson Splitter, also known as the 3 Way Micro Strip Splitter, is a professional RF power divider engineered for controlled and balanced signal distribution in cellular signal booster and antenna systems. Designed for reliability and precision, this component allows a single amplified RF signal to be divided evenly into three outputs without compromising signal stability or system performance.

Used extensively in telecommunications and in-building coverage solutions, the 3 Way Wilkinson Splitter is ideal for installations where one signal booster must feed three indoor antennas across separate rooms or coverage zones. It provides predictable signal allocation, helping installers design structured and efficient signal distribution networks.

Purpose and Functionality

The primary function of the 3 Way Wilkinson Splitter is to divide RF power equally into three paths while maintaining impedance balance across all ports. This ensures consistent signal strength distribution and minimises reflection or mismatch within the system.

The 3 Way Micro Strip Splitter design incorporates proven RF architecture widely adopted in commercial telecommunications infrastructure. It supports stable signal flow across GSM, 3G, 4G LTE, and compatible 5G frequency bands used in modern mobile communication networks.

When deployed correctly within a signal booster system, this splitter enables expanded indoor coverage without requiring multiple amplifiers. It plays a critical role in professional Distributed Antenna System (DAS) setups, office installations, retail environments, warehouses, and large residential properties.

Wide Frequency Compatibility

The 3 Way Wilkinson Splitter supports broadband frequency ranges typically used in cellular communication, including 698–2700 MHz. This ensures compatibility with:

• 2G GSM voice networks

• 3G data services

• 4G LTE high-speed data

• Selected 5G compatible bands

This broad frequency support allows the splitter to integrate seamlessly into multi-band signal booster systems without limiting network performance.

Low Signal Loss and Stable Performance

One of the key advantages of the 3 Way Micro Strip Splitter is its low insertion loss relative to signal division standards. While any splitter introduces theoretical power division loss, the Wilkinson configuration is specifically designed to maintain balance and minimise additional losses caused by reflections or impedance irregularities.

Stable performance is critical in signal booster installations. An unstable or poorly designed splitter can cause uneven signal distribution, dropped calls, slow data speeds, or coverage dead zones. This 3 Way Wilkinson Splitter is engineered to maintain controlled signal division, helping ensure consistent indoor coverage across all connected antennas.

Commercial and Residential Applications

The 3 Way Wilkinson Splitter is commonly installed in:

• Office buildings

• Retail stores

• Warehouses

• Guesthouses and hospitality venues

• Multi-room residential homes

• Security and monitoring installations

It is especially useful where one signal booster needs to provide coverage in three distinct areas. By enabling structured signal routing, it supports efficient infrastructure design while reducing the need for multiple amplification units.

Professional-Grade Construction

Manufactured using high-quality conductive materials, the 3 Way Micro Strip Splitter is built for long-term reliability in indoor environments. The housing is durable and compact, allowing for installation in ceiling cavities, network cabinets, or wall-mounted enclosures.

The unit is a passive RF component and does not require an external power supply. It connects inline between the output of a signal booster and the coaxial cable runs leading to indoor antennas.

Integration with Signal Booster Systems

The 3 Way Wilkinson Splitter is fully compatible with standard RF coaxial cables and commonly used connector types in cellular signal distribution systems. It is designed to integrate with:

• Mobile signal boosters

• Indoor panel antennas

• Ceiling omni antennas

• DAS infrastructure

• LTE and 5G antenna systems

Proper system planning is essential when incorporating a 3 Way Micro Strip Splitter.       Cable lengths, booster output power, and antenna placement must be calculated to ensure optimal coverage performance. When installed by a qualified technician, the splitter enhances scalability without compromising signal quality.

Cost-Effective Signal Distribution

Using a 3 Way Wilkinson Splitter allows businesses and property owners to expand indoor coverage economically. Instead of installing multiple boosters, a single amplifier can distribute signal across three antennas, reducing hardware costs while maintaining effective coverage.

This makes it a practical solution for commercial deployments where controlled expansion and infrastructure efficiency are priorities.

Technical Reliability and Industry Compliance

The 3 Way Micro Strip Splitter meets recognised RF design standards for signal division components. Its balanced architecture ensures predictable system behaviour under normal operating conditions. It is engineered for use in telecommunications environments where signal consistency is critical.

The 3 Way Wilkinson Splitter, also referred to as the 3 Way Micro Strip Splitter, is an essential RF component for professional signal distribution systems. It enables controlled three-way signal division across broadband cellular frequencies while maintaining stability and predictable performance.

For installers, system integrators, and businesses deploying mobile signal boosters and indoor antenna networks, this splitter provides a dependable and scalable solution. Designed for durability, compatibility, and consistent RF performance, it supports structured signal distribution without unnecessary complexity.

When balanced coverage across three areas is required, the 3 Way Wilkinson Splitter delivers reliable results aligned with professional telecommunications standards.
